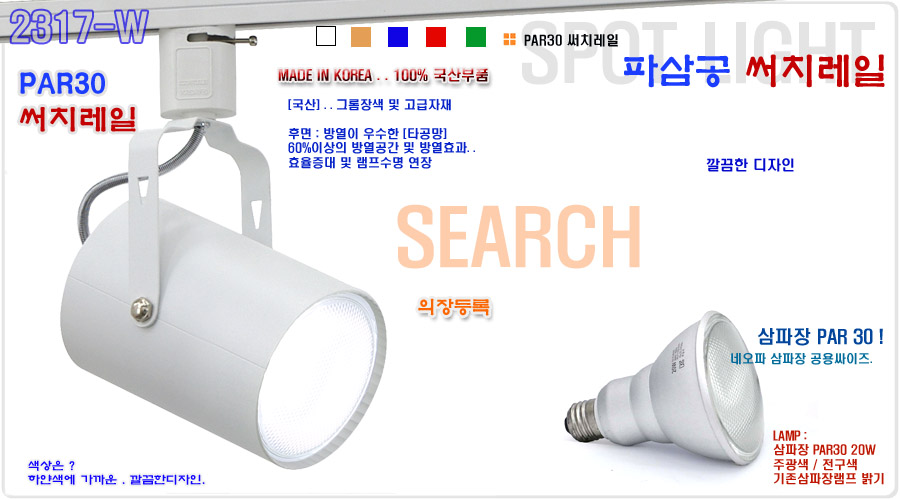

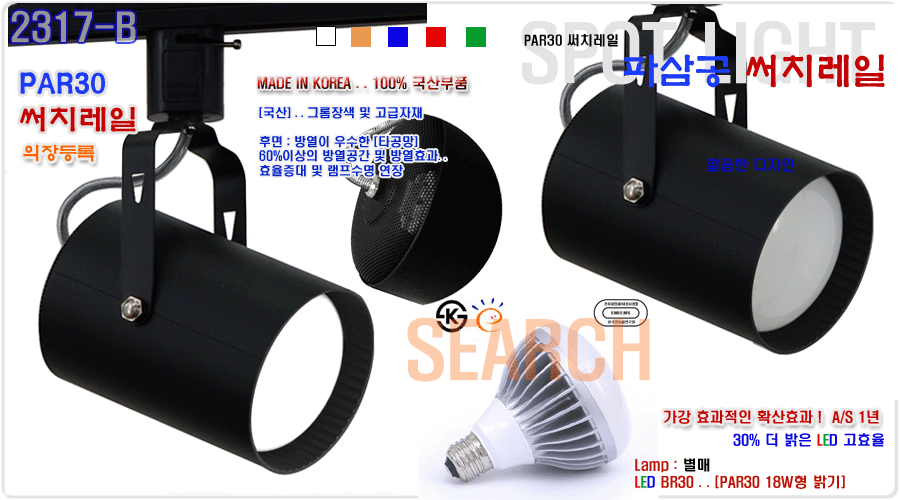

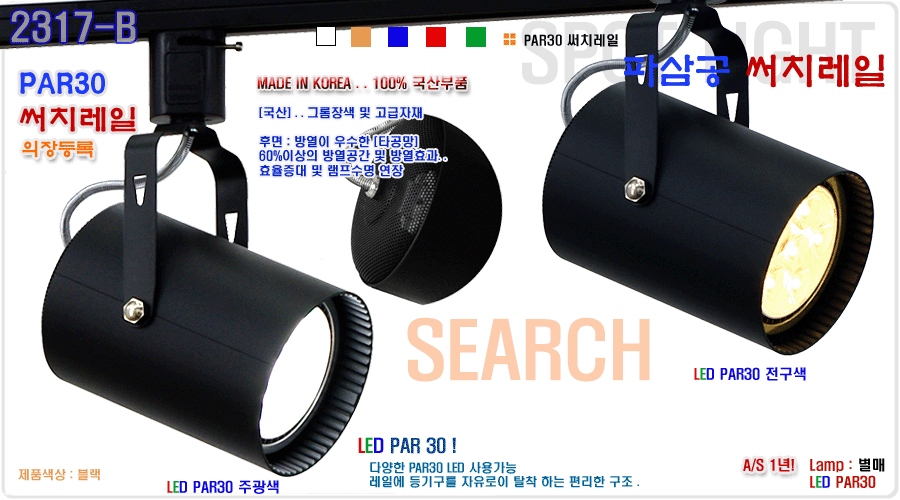

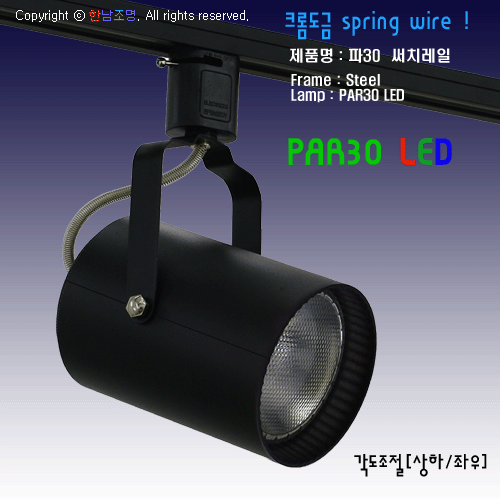

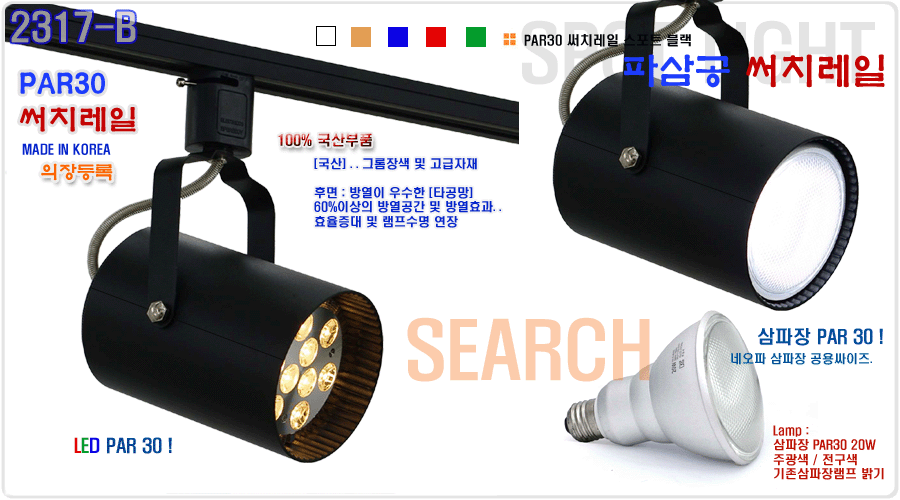

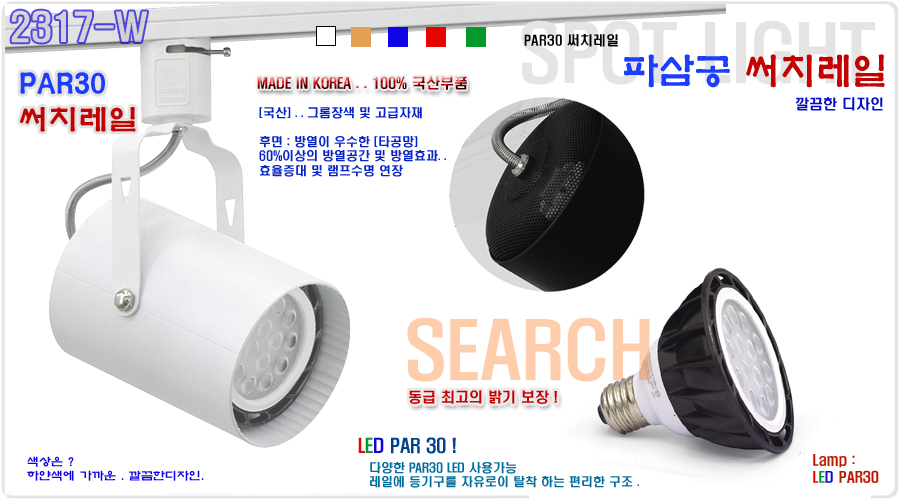

PAR30 써치레일[망타입] [보충자료]
|
 |
|
|
|
|
 Main Parts Specification
| |
|
P-No |
Name |
Material |
Size |
Process |
Significance |
Etc |
|
1 |
Socket |
insulator Stone |
E-26Base |
double layer |
KS Standard / thermal resistance wire |
- |
|
2 |
Body |
Aluminium |
100 x 180 x 2t |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
3 |
Suspension |
Steel |
10 x 1t |
Powder Coating |
pure color ( White / Black )
*) not recycled Powder |
- |
|
4 |
Rail Flug |
ABS |
35 x 25 x 55 |
injection molding |
1t copper terminal socket
8mm Samson Bolt |
- |
|
5 |
Mesh |
Steel |
10 x 1t |
polished |
for heat rejection rate
and rear design view |
- |
|
6 |
Bearing |
SUS 316 |
9.7 x 10 |
polished |
for protection against the looseness of flug mechanical motion
for effective rotation of track flug |
- |
|
|
* Leave other 8 parts out of view | | |
|
|
|
|
Significance of Goods | |
|
No |
Basic Data |
Significance |
Etc |
|
1 |

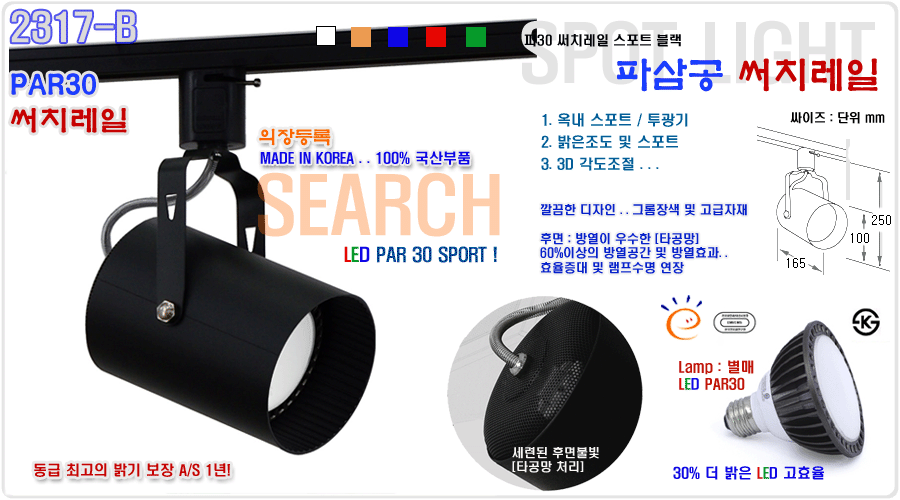

Size |
Setting Range ( Width : 110 / Height : 220 ~ 300 ) |
- |
|
2 |
Mechanical |
3D Space Control ( 360-degree Rotation : 1 Point / 270-degree angle control knob : 1 pair) |
- |
|
3 |
Durability |
durable joint for repeated rotation of mecanical motion |
- |
|
4 |
Heat rejection |
improve function of Heat sinking plane in LED |
- |
|
|
* PS) copper is no coated material / all no recycled material | | |
|
* refer to hannam design data. | |
| |
|
|
|
|
|
|
|
|
|
