원통 레일등 2612 [보충자료]
|
 |
|
|
|
|
 Main Parts Specification
| |
|
P-No |
Name |
Material |
Size |
Process |
Significance |
Etc |
|
1 |
Socket |
insulator Stone |
E-26Base |
- |
KC Standard |
- |
|
2 |
Body |
Aluminium |
100 x 145 x 1t |
Powder Coating |
White / Black
|
- |
|
3 |
Suspension |
*) Steel |
10 x 1.2t |
Powder Coating |
White / Black |
- |
|
4 |
Rail Flug |
PC |
52 x 42 x 33 |
injection molding |
0.5t copper socket
|
- |
|
5 |
Punching |
Steel |
5 x 30 hole |
polished |
for heat rejection |
- |
|
|
* Leave other 8 parts out of view | | |
|
|
|
|
Significance of Goods | |
|
No |
Basic Data |
Significance |
Etc |
|
1 |
Size |

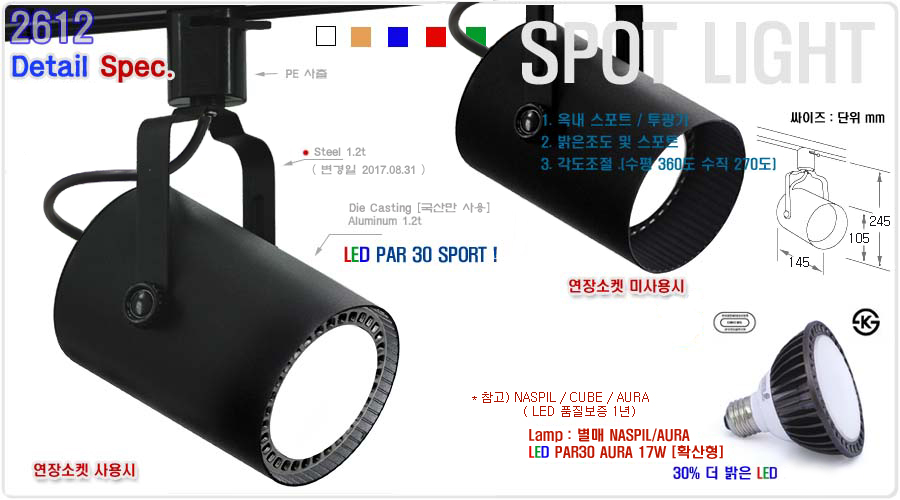

Setting Range ( Width : 110 / Height : 220 ~ 245 ) |
- |
|
2 |
Mechanical |
3D Space Control ( 360-degree Rotation : 1 Point / 270-degree angle control knob : 1 pair) |
- |
|
3 |
Heat rejection |
normal Heat ventilation hole |
- |
|
|
* PS) copper is no coated material / popular goods / wholesale and retail price | | |
|
* refer to hannam design data. | |
| |
|
|
|
|
|
|
|
|
|
원통 레일등 2612 [보충자료]
|
|
|
|
|
|
Main Parts Specification | |
|
P-No |
Name |
Material |
Size |
Process |
Significance |
Etc |
|
1 |
Socket |
insulator Stone |
E-26Base |
- |
KC Standard |
- |
|
2 |
Body |
Aluminium |
100 x 145 x 1t |
Powder Coating |
White / Black
|
- |
|
3 |
Suspension |
*) Steel |
10 x 1.2t |
Powder Coating |
White / Black |
- |
|
4 |
Rail Flug |
PC |
52 x 42 x 33 |
injection molding |
0.5t copper socket
|
- |
|
5 |
Punching |
Steel |
5 x 30 hole |
polished |
for heat rejection |
- |
|
|
* Leave other 8 parts out of view | | |
|
|
|
|
Significance of Goods | |
|
No |
Basic Data |
Significance |
Etc |
|
1 |
Size |
Setting Range ( Width : 110 / Height : 220 ~ 245 ) |
- |
|
2 |
Mechanical |
3D Space Control ( 360-degree Rotation : 1 Point / 270-degree angle control knob : 1 pair) |
- |
|
3 |
Heat rejection |
normal Heat ventilation hole |
- |
|
|
* PS) copper is no coated material / popular goods / wholesale and retail price | | |
|
* refer to hannam design data. | |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
